Implement Azure App Service Web Apps

This guide covers the AZ-204 exam topics for implementing Azure App Service Web Apps:

  • Create an Azure App Service Web App
  • Configure and implement diagnostics and logging
  • Deploy code and containerized solutions
  • Configure settings including Transport Layer Security (TLS), API settings, and service connections
  • Implement autoscaling
  • Configure deployment slots

Prerequisites

  • .NET SDK 8.0 (Install via winget: winget install Microsoft.DotNet.SDK.8)
  • Azure CLI (Install)
  • Azure Functions Core Tools (Install)
  • Azure Subscription (Free tier or $200 credit recommended for minimal costs)
  • Existing Resource Group

Set Up Azure App Service

Follow these steps to set up an Azure App Service and create a .NET Core MVC app:

  1. Create a new App Service in the Azure Portal.

  2. Create a .NET Core MVC app locally.

  3. Add a model for tasks.

  4. Update the controller to handle tasks.

  5. Modify the home page view to add a form.

  6. Test the app locally.

  7. Deploy the app to Azure App Service.

  8. Configure settings (TLS, API settings, service connections).

Step 1: Create a New App Service

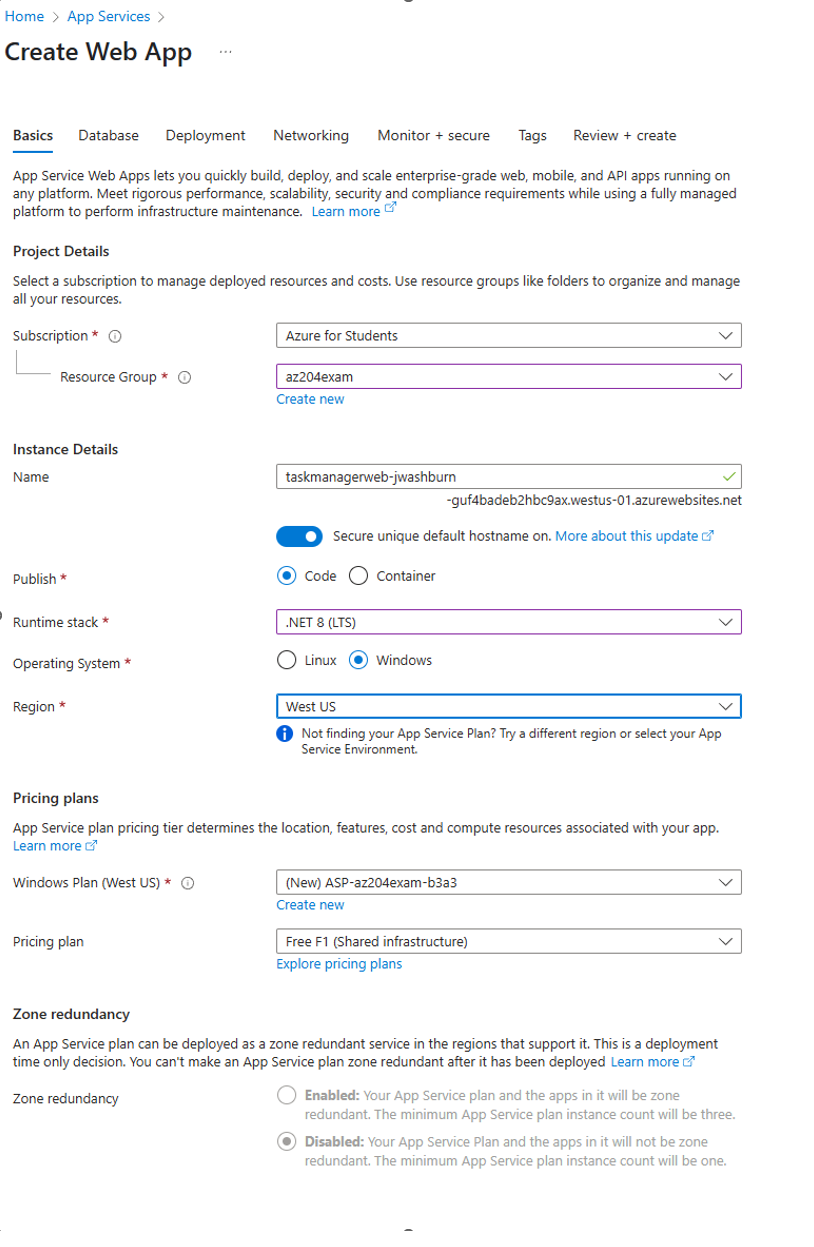

In the Azure Portal, create a new App Service:

  • Use the Free F1 tier to avoid costs.
  • Note the app name (e.g., taskmanagerweb-yourname) and resource group (e.g., az204exam).
  • Check out the tabs for a learning experience; we are leaving them as default.

Portal Screenshot

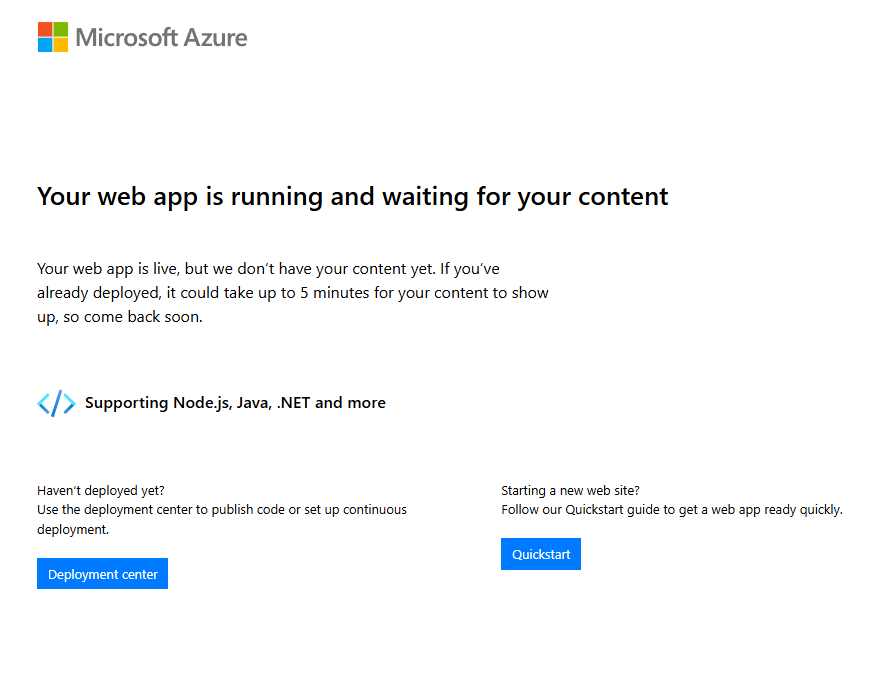

Once it's built, hit the URL to confirm it's up.

Portal Screenshot

Step 2: Create a .NET Core MVC App Locally

Create and run the app locally.

dotnet new mvc -o TaskManagerWeb
cd TaskManagerWeb
dotnet run

Verify the app runs at http://localhost:port.

Launch your preferred editor (e.g., VS Code).

code .

Step 3: Add a Model for Tasks

Browse into the Models directory under TaskManagerWeb and add TaskItem.cs.

namespace TaskManagerWeb.Models
{
    public class TaskItem
    {
        public string id { get; set; } = System.Guid.NewGuid().ToString();
        public string? Title { get; set; }
        public string? Description { get; set; }
        public string? DueDate { get; set; }
    }
}

Step 4: Update the Controller to Handle Tasks

Update Controllers/HomeController.cs to handle tasks (in-memory for now).

using Microsoft.AspNetCore.Mvc;
using TaskManagerWeb.Models;
using System.Collections.Generic;

namespace TaskManagerWeb.Controllers
{
    public class HomeController : Controller
    {
        private static List<TaskItem> _tasks = new List<TaskItem>();

        public IActionResult Index()
        {
            return View(_tasks);
        }

        [HttpPost]
        public IActionResult Create(string title, string description, DateTime dueDate)
        {
            var task = new TaskItem
            {
                Title = title,
                Description = description,
                DueDate = dueDate.ToString("yyyy-MM-dd") // Convert DateTime to string
            };
            _tasks.Add(task);
            return RedirectToAction("Index");
        }
    }
}

Step 5: Modify the Home Page View to Add a Form

The view (Index.cshtml) defines the UI, including the form for adding tasks and a list to display them.

Open Views/Home/Index.cshtml and replace the default content with:

@model List<TaskManagerWeb.Models.TaskItem>

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>Task Manager</title>
    <style>
        <text>
        body {
            font-family: 'Segoe UI', Arial, sans-serif;
            background-color: #f4f6f9;
            color: #333;
            margin: 0;
            padding: 20px;
            line-height: 1.6;
        }

        h1 {
            color: #2c3e50;
            text-align: center;
            margin-bottom: 20px;
        }

        h2 {
            color: #34495e;
            margin-top: 30px;
            border-bottom: 2px solid #3498db;
            padding-bottom: 5px;
        }

        form {
            background: #fff;
            padding: 20px;
            border-radius: 8px;
            box-shadow: 0 2px 10px rgba(0, 0, 0, 0.1);
            max-width: 500px;
            margin: 0 auto;
        }

        div {
            margin-bottom: 15px;
        }

        label {
            display: block;
            font-weight: 600;
            margin-bottom: 5px;
            color: #2c3e50;
        }

        input[type="text"],
        textarea,
        input[type="date"] {
            width: 100%;
            padding: 10px;
            border: 1px solid #ccc;
            border-radius: 4px;
            font-size: 14px;
            box-sizing: border-box;
        }

        textarea {
            resize: vertical;
            min-height: 100px;
        }

        input:focus,
        textarea:focus {
            outline: none;
            border-color: #3498db;
            box-shadow: 0 0 5px rgba(52, 152, 219, 0.3);
        }

        button {
            background-color: #3498db;
            color: #fff;
            padding: 10px 20px;
            border: none;
            border-radius: 4px;
            font-size: 16px;
            cursor: pointer;
            transition: background-color 0.3s;
        }

        button:hover {
            background-color: #2980b9;
        }

        ul {
            list-style: none;
            padding: 0;
            max-width: 600px;
            margin: 20px auto;
        }

        li {
            background: #fff;
            padding: 15px;
            margin-bottom: 10px;
            border-radius: 6px;
            box-shadow: 0 1px 5px rgba(0, 0, 0, 0.1);
            display: flex;
            justify-content: space-between;
            align-items: center;
        }

        li.no-tasks {
            color: #7f8c8d;
            font-style: italic;
            text-align: center;
            box-shadow: none;
        }

        .task-info {
            flex-grow: 1;
        }

        .task-info strong {
            color: #2c3e50;
        }

        @@media (max-width: 600px) {
            form, ul {
                padding: 10px;
            }

            li {
                flex-direction: column;
                align-items: flex-start;
            }
        }
        </text>
    </style>
</head>
<body>
    <h1>Task Manager</h1>

    <form asp-action="Create" method="post">
        <div>
            <label>Title:</label>
            <input type="text" name="title" required />
        </div>
        <div>
            <label>Description:</label>
            <textarea name="description"></textarea>
        </div>
        <div>
            <label>Due Date:</label>
            <input type="date" name="dueDate" required />
        </div>
        <button type="submit">Add Task</button>
    </form>

    <h2>Tasks</h2>
    <ul>
        @if (Model != null && Model.Any())
        {
            foreach (var task in Model)
            {
                <li>
                    <div class="task-info">
                        <strong>@task.Title</strong> - @task.Description
                        <br />
                        <small>Due: @(task.DueDate ?? "No due date")</small>
                    </div>
                </li>
            }
        }
        else
        {
            <li class="no-tasks">No tasks yet.</li>
        }
    </ul>
</body>
</html>

Step 6: Test the App Locally

Test the app to ensure it works locally.

dotnet run

Step 7: Deploy to Azure App Service

Push the app to the Azure App Service created earlier.

az webapp up --name taskmanagerweb-yourname --resource-group az204exam --sku F1 --location yourlocation --runtime "dotnet:8"

Test the app in your browser. You can get the URL from the App Service Overview page.

Step 8: Configure Settings (TLS, API Settings, Service Connections)

Add App Settings:

  • Go to Settings > Environment Variables.
  • Click + Add Button.
  • Name: CosmosDBConnection, Value: placeholder (we’ll use this later for Cosmos DB).
  • Click Apply > Apply > Confirm to restart the app.

Set Up Managed Identity:

  • Go to Identity > System assigned.
  • Turn Status to On > Save.
  • Note: This lets the app securely connect to other Azure services (like Cosmos DB) without passwords later.

Verify:

  • Check Environment Variables in the Portal to see CosmosDBConnection.
  • No code changes needed, but the app is ready for future connections.

Implement Autoscaling

Note: Autoscaling requires a Standard (S1) or higher tier. You will have to chase this thread on your own.

Configure Deployment Slots

Note: Deployment slots need a Standard (S1) or higher tier, not Free F1. You will have to chase this thread on your own.

Next Steps

  • Do everything again, but this time use the CLI to build the Web App.
  • If you are going to take a break, you could clean up here, but the next section builds on what we have done here.
